siehhld63b600

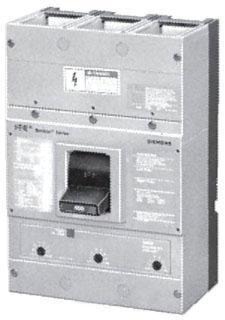

SIEMENS HHLD63B600 Breaker 3-pole 50kA 600A 600V
siehhld63b600
SIEMENS HHLD63B600 Breaker 3-pole 50kA 600A 600V
Price
$10,335.92
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:SIEMENS
Manufacturer #:HHLD63B600
Description
ADJUSTABLE TRIP, MOLDED CASE, THERMAL MAGNETIC; LD FRAME; 600 VAC AT 50/60 HZ; 600 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 200 KILOAMPERE AT 240 VAC, 100 KILOAMPERE AT 480 VAC, 50 KILOAMPERE AT 600 VAC (UL); 200 KILOAMPERE AT 220/240 VAC, 100 KILOAMPERE AT 380/415 VAC, 65 KILOAMPERE AT 500 VAC (IEC); TERMINAL LINE LUG, LOAD LUG; SIZE 7.5 INCH W X 5.44 INCH D X 11 INCH H; SENTRON[R] BRAND; HHLD MODEL; TRIP RANGE 3000 TO 6000 KILOAMPERE; ICS RATING 100 KILOAMPERE AT 220/240 VAC, 50 KILOAMPERE AT 380/415 VAC, 33 KILOAMPERE AT 500 VAC (IEC)
Specifications
| Brand Name | Siemens | Sub Brand | Sentron |
| Type | HLD6 | Number of Poles | 3 |
| Interrupt Rating | 35 kAIC | Voltage Rating | 600 V |
| Trip Range | 3000-6000 | Frequency Rating | 50/60 Hz |
| Actuator | Varying | Auxiliary Contacts | N/A |
| Frame | LD | Trip Type | Thermal Magnetic |
| Standards | HACR | Application | Standard 40C Breaker |
| UPC | 783643008366 |
Packages
| 1 - UNIT - 1 |
