KLNCL810

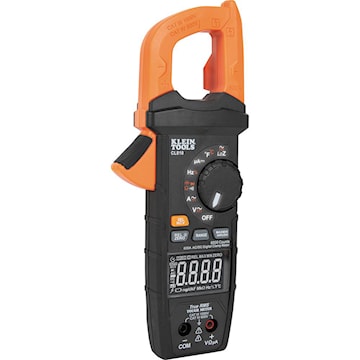

KLEIN TOOLS CL810 600A CLAMP METER WITH WORKLIGHT
Description
Klein Tools CL810 Clamp Meter with Flashlight delivers accurate measurements across AC/DC current, voltage, resistance, continuity, frequency, inrush, and capacitance, all with True RMS precision. It features diode testing and LoZ mode to eliminate ghost voltages. Temperature is taken via thermocouple. Features NCV detection with escalating audio-visual alert. The transflective reverse-contrast display and lighted dial ensure visibility in any lighting; a reliable tool for diverse applications.
Clamp meter with True RMS provides accurate and reliable measurements across various applications
Measures AC/DC voltage, AC/DC current 10mA-600A, resistance, DC micro amps, temperature, diode test, continuity, capacitance, frequency/duty cycle, and inrush
Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
Illuminated dial ensures clear visibility and easy reading, even in low-light environments
Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
Integrated worklight illuminates the work area for improved visibility in dark or confined spaces
Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
Rated IP40 for ingress protection, withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb
Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
Specifications
| Brand Name | Klein Tools | Item Name | 600A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight |
| Type | Pro Clamp Meter | Display | Transflective Reverse-Contrast with 6000 Count LCD |
| AC Voltage Range | 1000V | DC Voltage Range | 1000V |
| Capacitance | 6000µF | Temperature Range | 40° to 1832° F (-40° to 1000° C) |
| Frequency Range | 1Hz - 500 KHz | Dimensions | 9.06 inch (L) x 3.47 inch (W) x 1.65 inch (H) |
| Weight | 0.810 lb | Includes | Clamp Meter; Right-Angle Input Test Leads; Thermocouple; Storage Pouch; Instruction Manual; and 3 x AAA Batteries |
| Standards | CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA | Application | Variety Of Electrical Diagnostic And Troubleshooting Applications |
| UPC | 092644694486 |
Packages
| 1 - UNIT - 1 |
