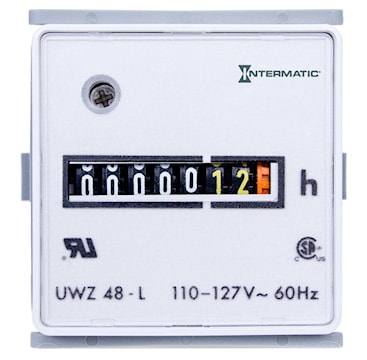

INTERMATIC UWZ48E-120UINTERMATIC UWZ48E-120UINTERMATIC UWZ48E-120U AC Hour Meter
intuwz48e120u
INTERMATIC UWZ48E-120UINTERMATIC UWZ48E-120UINTERMATIC UWZ48E-120U AC Hour Meter
Price
$95.54
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:INTERMATIC
Manufacturer #:UWZ48E-120U
Description
Flush mounted with bracket, the UWZ48E unit fits into a 1.79" x 1.79" (45.5 x 45.5 mm) cutout. The thickness of the panel for flush mounting can be up to .35" (9 mm). The unit is secured in position by a plastic slip-on retaining bracket. The unit also fits square or round openings for 72 mm with optional 72 mm bezel.
Specifications
| Brand Name | Intermatic | Item Name | AC Hour Meter |
| Type | Non-Resettable | Display Type | Analog |
| Timing Range | 99999.99 hr | Voltage Rating | 120 V |
| Temperature Rating | -40 to 160 °F | Frequency Rating | 60 Hz |
| Color | Gray | Series/Model | UWZ48E |
| Bezel Face Size | 1.89 X 1.89 in | Bezel Face Type | Square |
| Mounting | Flush | Includes | Bracket |
| Standards | UL Listed, CSA, CE Certified, HVACR Rated | Application | For Indoor Use |
| UPC | 614573212106 |
Packages
| 1 - UNIT - 1 |
