HOFFMAN MCPL600 BAYING BRACKET PROLINE TO IEC

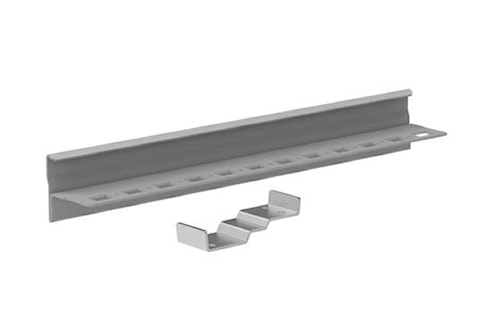

Fixation baying brackets provide a rigid reinforcement of the assembly of MCS and MCD enclosures with a Proline enclosures. The correct spacing between the enclosures is assured as well as the IP rating of the bayed configuration. A baying kit including snap-lines, mounted on the interior of the profiles, to allow for side-to-side baying of an IEC Modular Enclosure with a Proline floor standing enclosure. Advantage: Tool free assembly without the need to remove the door and rear panel. Benefit: Reduction of assembly time. Comment: These brackets should not be used in combination with a separation plate or mounting plate if mounted on the side of the enclosure. Baying Brackets are zinc plated; Frame Extension Profiles are powder coated light gray RAL 7035.
