HOFATEMHUM

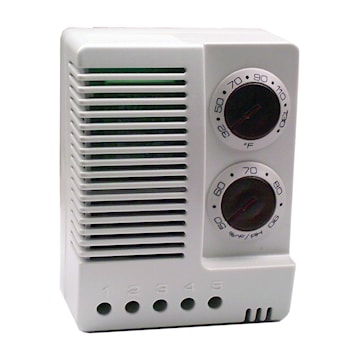

HOFFMAN ATEMHUM Hygrotherm electronic plast gry 3.03x2.36x1.69in
Description
Electronic hygrotherm with high switching capacity. Temperature (32-140 °F) and humidity (50 to 90% RH) adjustment. Optical function displays (LED) in each control. Mounting clip for 35 mm DIN rail. Change-over contact (relay). Operating voltage is AC 100-240 V with maximum switching capacity of 10 A resistive / 1.6 A inductive at AC 240 V.
Temperature (32-140 F) and humidity (50%-90% RH) adjustment
High switching capacity
Optical function displays (LED) in each control
Mounting clip for 35-mm DIN rail
Change-over contact (relay)
Connection is a 5-pole terminal for AWG 14 max (2.5-mm square); clamping torque .5 Nm (4.4 in-lbs) maximum
Plastic housing UL94V-0
Vertical mounting
Operating voltage is AC 100-240 V with maximum switching capacity of 10 A resistive / 1.6 A inductive at AC 240 V
Specifications
| Brand Name | nVent Hoffman | Sub Brand | Hoffman |
| Item Name | Electronic Hygrotherm with Thermostat | Type | Cooling Accessories |
| Switch Action | 1 CO | Voltage Rating | 100 - 120 VAC |
| Amperage Rating | 10 A | Humidity Range | 50 - 90% |
| Mounting Type | DIN Rail | Color | Gray |
| Temperature Rating | 32 - 140 °F | Dimensions | 3.03 x 2.36 x 1.69 in |
| Standards | CE Certified, cURus E164102 | Application | For Controls and Drives, Power Distribution |
| UPC | 783510164478 |
Packages
| 1 - UNIT - 1 |
