HOFAOEFG118

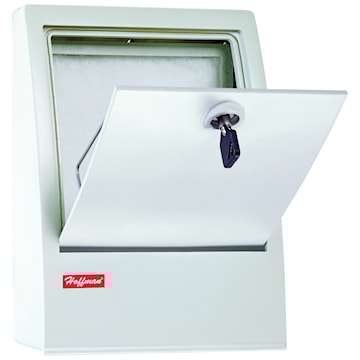

HOFFMAN AOEFG118 Grille kit exhaust for AOFF118 fan package
Description
Exhaust grille kit for use with AOFF118 outdoor filter fan package.
The fan has a ball bearing axial with a service life minimum of 50,000 hours at 77 F (25 C) and 65 percent relative humidity.
Airflow 11.8 CFM (20 cubic meters/hour) free blowing
Aluminum fan body, plastic impeller
Removable F5 filter
Lockable door in hood
Two-sided tape provided
Filter hood permanently fixed to enclosure from inside
2 lead wires, 3.94-inch (100-mm) long, with pressure clamps, 14 gauge max. (2.5 mm)
Synthetic filter material, temperature resistant to 212 F (100 C), self-extinguishing class F1, moisture resistant to 100 percent RH
Filter mat: Fine grade F5 to DIN EN779 filtering degree: 98 percent of particles larger than 10 µm (10 microns)
Specifications
| Brand Name | Hoffman | Sub Brand | Hoffman |
| Type | Open-Loop Cooling | Width | 6.5 in |
| Depth | 5 in | Height | 2.90 in |
| Material | Plastic | Color | Gray |
| Finish | Matte | Standards | CE, cURus Type 12, File No. E234324, NEMA Type 3R, IEC/EN60529, IP55 |
| Application | Controls and Drives; Power Distribution | UPC | 783510164539 |
Packages
| 1 - UNIT - 1 |
