BURYA8CTC14

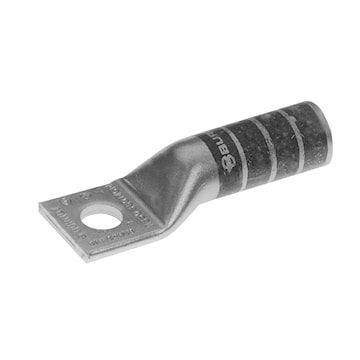

HUBBELL YA8CTC14 #8 AWG 1/4" Stud Copper Compression Lug, Long Barrel, Tin Plated
Description
Copper Compression Lug, 1 Hole w/o Inspection Window, #8 AWG, 1/4" Stud, Long Barrel, Tin Plated.
Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color
Specifications
| Brand Name | Burndy | Sub Brand | Hylug™ |
| Item Name | Compression Lug without Inspection Window | Type | Non-Insulated |
| Conductor Size | 6 AWG Solid Copper, 8 AWG Stranded Copper | Number of Holes | 1 |
| Stud Size | 1/4 in | Barrel Diameter | 0.27 in |
| Barrel Length | 0.81 in | Tongue Size | 0.64 in L x 0.44 in W x 0.08 in T |
| Overall Length | 1.69 in | Color Code | Red |
| Material | Copper | Voltage Rating | 600 - 35000 V |
| Barrel Type | Long, Chamfered | Tongue Type | Standard, Straight |
| Die Code | 49 | Strip Length | 1-3/16 in |
| Finish | Electro Tin Plated | Temperature Rating | 90 °C |
| For Use With | Code Conductor | Standards | UL 467 Listed, CSA Certified, RoHS Compliant |
| Application | For Code Conductor | UPC | 781810502402 |
Packages
| 1 - UNIT - 1 | 5 - UNIT - 5 | 100 - UNIT - 100 |
