HOFMCD18166PER5
HOFFMAN MCD18166PER5 FLOOR-STAND MCD ENC
Description

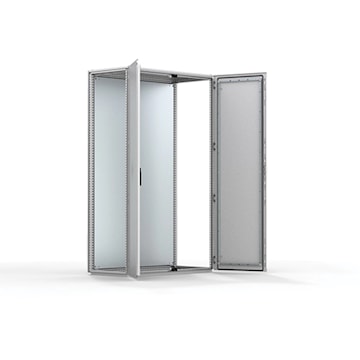

Modular Double Door, no Plate, Rear Panel, 1800x1600x600mm, Gray, Mild Steel
Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
Doors: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
Rear panel: Fitted by M6 torx screws. Standard facilities for rear doors mounting. Split rear panels in 1600 mm wide enclosures. RD version comes with rear door instead of rear panel.
Side panels: Supplied as an accessory.
Roof panel: Removable.
Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the secondary door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
Bottom plates: Consists of three or four (D<gt/>600) pieces.
Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
Earthing: All panels are earthed through their fittings and equipped with a separate earthing stud.
Packages
| 1 - UNIT - 1 |
