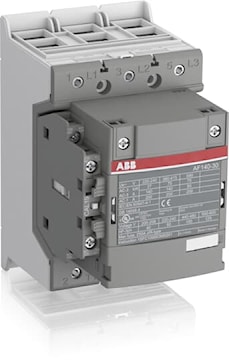

ABB AF140-30-11-13 200Amp 100-250V 50/60Hz 3-Pole AF140 Series Contactor
abbaf140301113
ABB AF140-30-11-13 200Amp 100-250V 50/60Hz 3-Pole AF140 Series Contactor
Price
$697.35
/ EA
Inventory
Available for delivery
Available for pick up at
Abbotsford
Manufacturer:ABB
Manufacturer #:AF140-30-11-13
Description
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 100-250 V, 50/60 Hz and DC
Specifications
| Brand Name | ABB | Item Name | IEC Contactor |
| Type | Contactors | Coil Voltage | 100 - 250 VAC/DC |
| Power Rating | 37 kW at 220-230-240 V, 75 kW at 380 - 400 V, 415 V, 90 kW at 440 V, 500 V, 75 kW at 690 V | Phase | 3 |
| Contact Configuration | 1 NO, 1 NC Auxiliary | Number of Poles | 3 |
| Terminal Connection | Screw | Dimensions | 90 x 150 x 126 mm |
| Voltage Rating | 690 VAC | Amperage Rating | 200 A |
| Frequency Rating | 50/60 Hz | HP Rating | 100 hp |
| Conductor Size | 10 - 95 mm² Stranded, 10 - 70 mm² Flexible | Temperature Rating | -25 to 50 °C |
| Standards | CB, CCC, CE, RINA, RoHS Compliant, IEC 60947-4-1 and EN 60947-4-1, UL 60947-4-1A and CSA C22.2 N° 60947-4-1-07 | Application | Suitable for Various Applications Such as Motor Starting, Isolation, By-Pass and Distribution Application Up to Max 690 V |
| UPC | 888614152663 |
Packages
| 1 - UNIT - 1 |
