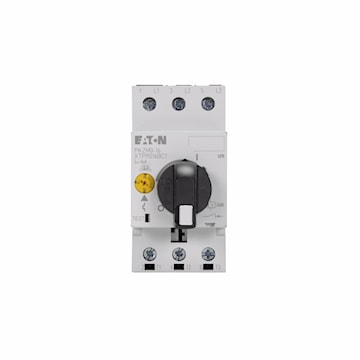

EATON XTPR016BC1 10-16Amp Eaton Frame B XTPR Rotary Manual Motor Protector with Screw Terminals
cthxtpr016bc1
EATON XTPR016BC1 10-16Amp Eaton Frame B XTPR Rotary Manual Motor Protector with Screw Terminals
Inventory
Unavailable for order
Manufacturer:EATON
Manufacturer #:XTPR016BC1
Description
XT manual motor protectors are selected based on the overload current range required for a given motor. This current range is determined from the motor full load ampere rating and motor service factor usually found on the motor nameplate. Type 1 and type 2 coordination motor protective device with thermal and magnetic trip.
Specifications
| Brand Name | Cutler Hammer | Item Name | Manual Motor Starter |
| Type | Rotary, Frame B | Amperage Rating | 16 A |
| Short-Circuit Current | 224 A | Trip Class | 10 |
| Dimensions | 45 mm W x 94 mm D x 93 mm H | Power Rating | 4 kW at 230 V, 7.5 kW at 400 V |
| Terminal Connection | Screw | Standards | CSA Std. C22.2,UL 508 |
| Application | Commercial / Institutional Buildings / Structures - Safety and Security Systems | UPC | 015082653426 |
Packages
| 1 - UNIT - 1 |
