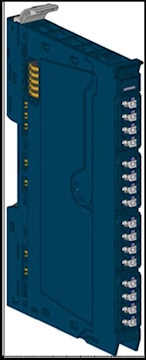

GE INTELLIGENT PLATFORMS EP-4264 RSTi EP I/O Analog Output Module - 14-Channel Voltage/Current 16-Bit with Diagnostics 2, 3, or 4 Wire
gefep4264
GE INTELLIGENT PLATFORMS EP-4264 RSTi EP I/O Analog Output Module - 14-Channel Voltage/Current 16-Bit with Diagnostics 2, 3, or 4 Wire
Price
$977.24
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:EMERSON
Manufacturer #:EP-4264
Description
The analog output module EP-4264 can control up to four analog actuators with ±10 V, ±5 V, 0-10 V, 0-5 V, 2-10 V, 1-5 V, 0-20 mA or 4-20 mA. The resolution is 16 bit per channel. An output can be connected to each connector, the internal switching is carried out automatically. The output range is defined using parameterization. A status LED is assigned to each channel. The outputs are supplied with power from the output current path (IOUT). The module provides individual channel diagnosis with channel related error messages.
Specifications
| Brand Name | GE | Item Name | Output Module |
| Type | High Density, High Performance, 2, 3 or 4-Wire, Analog | Voltage Rating | 20.4 - 28.8 V Input, 2 - 10 V Output |
| Output | (4) Channel | Communication Ports | PROFINET RT, PROFIBUS, Modbus/TCP and EtherCAT |
| Dimensions | 0.45 in W x 2.99 in D x 4.72 in H | Series/Model | RSTi EP Series |
| Amperage Rating | 0 - 20 mA, 4 - 20 mA | Resolution | 16 Bit |
| Response Time | 1 Millisecond | Transfer Rate | 48 Mbps |
| Connection | RJ45 Copper | Mounting Type | DIN-Rail |
| Degree of Protection | IP20 | Temperature Rating | -20 to 60 °C |
| Environmental Conditions | 5 - 95% Non-Condensing Air Humidity, -40 to 85 °C Storage | For Use With | RSTi EP Network Adapter |
| Standards | ATEX Zone 2, Category 4, CE Certified, PLe), SIL 3 Compliant (IEC 62061 and EN ISO 13849-1, TUV SIL3, UL HazLoc Class 1 Division 2, UL Listed | Application | For installation, machine commissioning and service applications |
Packages
| 1 - UNIT - 1 |
