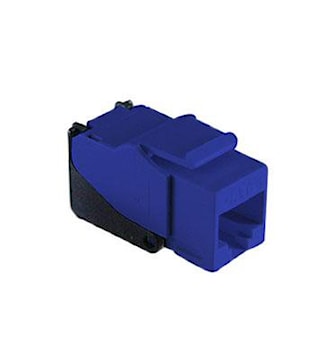

PASS & SEYMOUR WP3560BE Snap & Go Cat 6 Keystone Connector, Blue
onqwp3560be
PASS & SEYMOUR WP3560BE Snap & Go Cat 6 Keystone Connector, Blue
Price
$10.82
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:PASS & SEYMOUR
Manufacturer #:WP3560BE
Description
Save time and money on the jobsite with the new Snap and Go Cat 5e Keystone Connector. Never worry about not having a punchdown tool again with this amazing self terminating connector.FEATURES AND BENEFITS:• RoHS Compliant• Wire without a flat survace or palm tool.• Improves cable performance by maintaining tight wire twists.• Exceeds TIA 568 standards.• No punchdown tool required to terminate cable.• Terminate 10-20% faster than with a standarded RJ45 punchdown tools.
Specifications
| Brand Name | On-Q | Sub Brand | On-Q |
| Item Name | Category 6 Keystone Connector | Type | RJ45 Female |
| Cable Type | Category 6 | Number of Positions | 8 |
| Contacts | 50 µin 24K Hard Gold Over 70 - 100 µin Nickel Spring Wire, Phosphor Bronze Alloy with plated with 0.0001 µin Silicon alloy | Color | Blue |
| Cable Size | 24-22 AWG | Number of Contacts | 8 |
| Amperage Rating | 2.1 A at 72 °C | Contact Resistance | 20 mO (Maximum, Spring Wire Contact), 2.5 mO (maximum, IDC Contact) |
| Finish | Injection Molded Plastic Etched with Diamond Core | Insertion Loss | 0.01 - 0.4 dB Typical |
| Insulation Resistance | 500 mO | Mounting Type | Wallplate, Strap |
| Plug Retention Force | 50 N at 60 sec | Temperature Rating | -10 to 60 °C |
| Dimensions | 0.657 in x 0.866 in x 1.358 in | Environmental Conditions | 0 - 93% (Relative Humidity, Non-Condensing) |
| Standards | UL Listed, RoHS Compliant | Application | For Residential |
| UPC | 804428031062 |
Packages
| 1 - UNIT - 1 | 20 - UNIT - 20 | 120 - SKID - 120 | 8640 - SKID - 8640 |
