SIEMXD63B800H

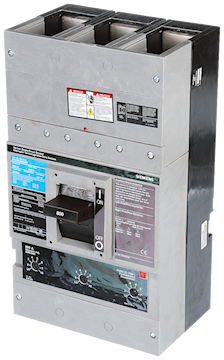

SIEMENS 800Amp 600V 3-Pole Low Voltage Sentron Molded Case Circuit Breaker
Description
Siemens Low Voltage Sentron Molded Case Circuit Breaker with thermal - magnetic trip unit. Assembled 100 percent rated standard 40 deg c breaker MD frame with standard breaking capacity. 800A 3-Pole (25kaic at 600V) (50kaic at 480v). Non-interchangeable trip unit. Special features: no lugs installed. Dimensions (w x h x d) in: 9.00 x 16.0 x 6.00.
Specifications
| Brand Name | Siemens | Sub Brand | Sentron |
| Type | MXD6 | Number of Poles | 3 |
| Interrupt Rating | 25 kAIC | Voltage Rating | 600 V |
| Trip Range | 4000-8000 | Frequency Rating | 50/60 Hz |
| Actuator | Varying | Auxiliary Contacts | N/A |
| Frame | MD | Trip Type | Thermal Magnetic |
| Standards | UL/HACR/100% Rated | Application | Standard 40C Breaker |
| UPC | 783643320239 |
Packages
| 1 - UNIT - 1 |
