SQDQO120GFI

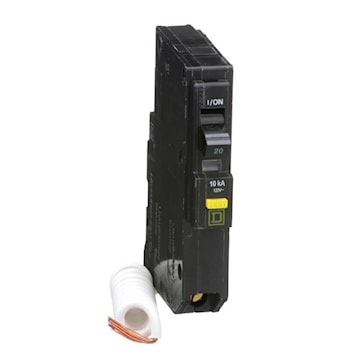

GESCAN QO120GFI 20Amp 1-Pole 120VAC 10kA Square D Type QO Ground Fault Circuit Breaker
Description
QO one pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
| Brand Name | Square D | Sub Brand | QO® |
| Item Name | Ground Fault Miniature Circuit Breaker | Type | Type QO |
| Number of Poles | 1 | Interrupt Rating | 10 kA |
| Amperage Rating | 20 A | Voltage Rating | 120 V |
| Terminal Connection | Pressure Plate | Mounting Type | Plug-in |
| Phase | 1 | Frequency Rating | 60 Hz |
| Conductor Size | 14-8 AWG Copper, 12-8 AWG Aluminum | NEMA Rating | Type AB1 |
| Trip Type | Thermal Magnetic | Temperature Rating | 40 °C |
| Dimensions | 3/4 in W x 2.91 in D x 4.12 in H | For Use With | QO Load Centers, NQ and NQOD Panelboards |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
Packages
| 1 - UNIT - 1 |
