dlrchom230gfi

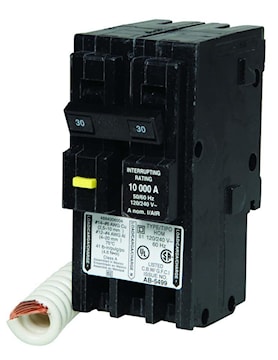

GESCAN CHOM230GFI HomeLine™ GFCI/Miniature Circuit Breaker Type CHOM 30 A, 2 P, Screw Clamp

Availablefor Backorder
Price $299.63 / EA
Qty EA
Manufacturer:GESCAN
Manufacturer #:chom230gfi

Description

Homeline miniature circuit-breaker with ground fault protecting class A 6 mA. Screw clamp terminals electrical connection with plug-on mounting.

Specifications

Brand Name Square D Sub Brand HomeLine™
Item Name GFCI/Miniature Circuit Breaker Type Type CHOM
Number of Poles 2 Interrupt Rating 10 kA
Amperage Rating 30 A Voltage Rating 120/240 VAC
Terminal Connection Screw Clamp Mounting Type Plug-On
Phase 1 Conductor Size 12-4 AWG Aluminum/Copper
Trip Type Thermal Magnetic Temperature Rating 104 °F
Standards CSA Certified, HACR Rated, RoHS Compliant

Packages

1 - UNIT - 1
