cab2/3d7alcut

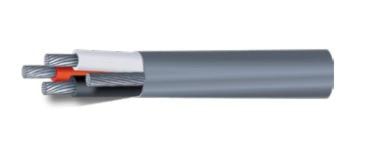

2/3C 300V NMD90 Loomex Aluminum Cable Cut

Price $12.2443 / M
Inventory
Available for delivery
Available for pick up at Abbotsford
M
() cuts
length (M)
Manufacturer:SONECABLE
Manufacturer #:2-03ALUMG-R-NMD

Description

NMD90 are for open or concealed wiring in dry or damp locations where not exposed to mechanical damage. Compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM conductors. Abrasion, heat and moisture resistant cross-linked polyethylene insulation (XLP). The 3 conductors are cabled together with a bare 8000 series compact aluminum ground. Phase conductors are color coded: black, red and white. PVC poly-vinyl chloride jacket, which is sunlight and moisture resistant. Temperature rating +90 to -25 Deg C.

Specifications

Brand Name Priority Wire & Cable Item Name NMD90 Building Wire
Wire Gauge Size 2 AWG Phase, 6 AWG Bare Number of Conductors 3
Conductor Material Aluminum Insulation Material Cross-Linked Polyethylene
Jacket Material PVC Voltage Rating 300 V
Outside Diameter 24.18 mm Insulation Thickness 1.14 mm
Amperage Rating 100 A Color Code Black/Red/White
Weight 1995 lb/km Temperature Rating -25 to 90 °C
Standards Requirements of the Canadian Electrical Code, ASTM Standards B 800, B 801, CSA 22.2 No. 48-09, Sunlight-Resistant, FT1 Application For Open or Concealed Wiring in Dry or Damp Locations Where Not Exposed to Mechanical Damage

Packages

150 - UNIT - 150 300 - UNIT - 300
