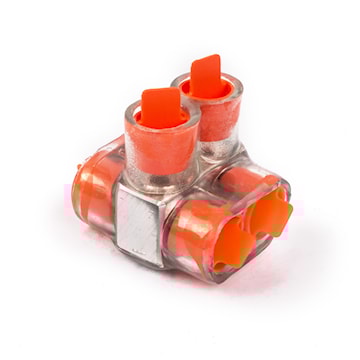

ABB CSB_2/0-2 2/0 kcmil-14 Str. 2-Way Configuration Aluminum Multi-Tap Encapsulated Cable Block

In Stock
Price $26.9572 / EA
Qty EA
Manufacturer:ABB
Manufacturer #:CSB 2/0-2

Description

Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 2/0 kcmil-14 Str, Hex Size 3/16 Inch, Length 1.63 Inches, Width 1.68 Inches, Height 1.63 Inches, Outlets 2, Clear Insulation.FEATURES:- Versatile design. Wide range of cable sizes and number of outlets available in one-way configurations.- Clear PVC Insulation. Safe and time saving installation with no taping required.

Specifications

Brand Name ABB Sub Brand Blackburn®, Homac®
Item Name Encapsulated Multi-Tap Connector Type 2-Way, 2-Outlet, Insulated
Voltage Rating 600 V Conductor Size 2/0-14 AWG
Material Aluminum, PVC Insulation Color/Finish Clear
Connection Type Screw Stud Size 3/16 in
Dimensions 1-5/8 in L x 1-3/4 in W x 1-3/8 in H Temperature Rating 90 °C
For Use With Copper or Aluminum Cable Standards UL File No. E9809 Listed, ANSI C119.4 Approved
UPC 783786714582

Packages

1 - UNIT - 1 10 - UNIT - 10
