HUBBELL YA44 Hylug™ Compression Lug without Inspection Window 1 Holes Copper 1000 kcmil Stranded Copper 5/8 in Stud size

Price $155.08 / EA
Available for backorder
Unavailable for pick up Abbotsford
Qty EA
Manufacturer #:YA44

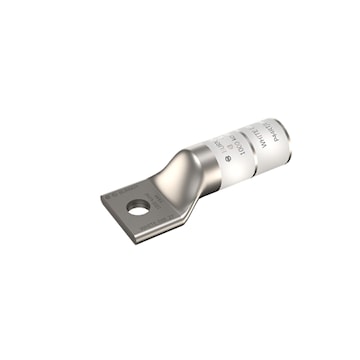

Copper Compression Lug, 1 Hole w/o Inspection Window, 1000 kcmil, 5/8" Stud, Long Barrel, Electro Tin Plated.


Brand Name Burndy Sub Brand Hylug™
Item Name Compression Lug without Inspection Window Type Long Barrel, Tin Plated
Conductor Size 1000 kcmil Stranded Copper Number of Holes 1
Stud Size 5/8 in Barrel Diameter 1-1/2 in
Barrel Length 3 in Tongue Size 1.33 in L x 2.19 in W x 0.33 in T
Overall Length 5.45 in Color Code White
Material Copper Voltage Rating 600 - 35000 V
Barrel Type Long, Chamfered Tongue Type Standard, Straight
Die Code 27 Strip Length 3-1/16 in
Finish Electro Tin Plated Temperature Rating 90 °C
For Use With Code Conductor Standards UL 486A-486B Listed, CSA Certified, RoHS Compliant
Application For Code Conductor UPC 781810522950
