idi30274

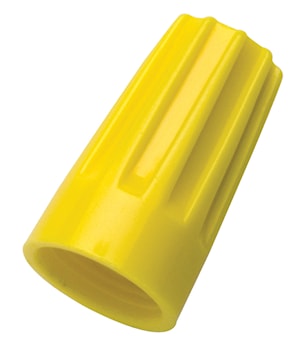

IDEAL INDUSTRIES 30-274 Wire-Nut® Wire Connector (500/Pack), Yellow

In Stock
Price $0.1864 / EA
Qty EA sold in multiples of 500
Manufacturer:IDEAL
Manufacturer #:30-274

Description

Wire-NutĀ® Wire Connector accepts 22 to 8 AWG wire combinations. Fixed, square-wire spring creates its own threads - maintains a secure positive grip that will not relax over time. No pre-twisting required - positive grip design provides fast, easy installation. Deep, wide skirt helps protect against flash-over and turned-back strands for maximum dielectric protection. Reusable for easy circuit changes and additions.

Specifications

Brand Name Ideal Sub Brand Wire-Nut®
Type Twist-On Voltage Rating 600 V
Conductor Size 12 AWG Number of Conductors 1,6
Material Flame-retardant Polypropelene Color Yellow
Standards CSA Certified to C22.2 #188, UL Listed to 486C, complies with Federal Specification W-S-610E Application Insulating or Joining 2 or more conductors
UPC 783250302741

Packages

1 - UNIT - 1 500 - UNIT - 500 10K - UNIT - (10,000)
