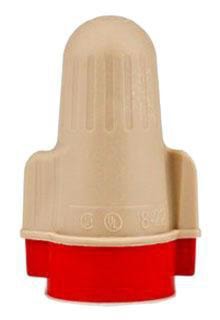

3M CANADA T/R-JUG 3M™ Performance Plus Wire Connector T/R+JUG, Super Tan, 750/Jug

In Stock
Price $0.1400 / EA
Qty EA sold in multiples of 750
Manufacturer:3M CANADA
Manufacturer #:T/R-JUG

Description

Use a 3M™ Wire connector T/R+ to electrically connect two or more conductor ends in a pigtail application and insulate the connection. Incredible wire range (2 #18 up to 5 #12). One connector replaces 3 (yellow, red tan) in the majority of all field applications. Smooth, comfortable feel. Compact size and red miniskirt. Quick bite spring design.

Specifications

Brand Name 3M Sub Brand Performance Plus™
Item Name Twist-On Wire Connector Type Fully Insulated, Wing, Straight Angled, Standard, Flame-Retardant
Voltage Rating 600 V Conductor Size 22-8 AWG
Connection Type Wire Material Plastic
Color Tan/Red Contact Material Spring Steel
Insulation Material Polypropylene, Thermoplastic Elastomer Length 1.17 in
Diameter 0.76 in Temperature Rating 105 °C
Standards UL Listed, CSA, CE and IEC Certified, RoHS Compliant Application Used to Electrically Connect Two or more Conductor Ends in A Pigtail Application and Insulate the Connection, for Residential Wiring Job and Wide Range Applications
UPC 051128544556

Packages

1 - UNIT - 1 3000 - UNIT - (3000)
