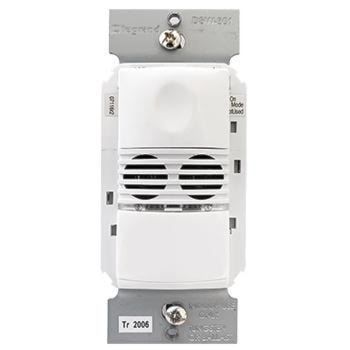

WATT STOPPER DSW-301-W 120/277V DSW-301 Dual Technology Wall Switch Occupancy Sensor, White
watdsw301w
WATT STOPPER DSW-301-W 120/277V DSW-301 Dual Technology Wall Switch Occupancy Sensor, White
Price
$185.16
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:WATT STOPPER
Manufacturer #:DSW301W
Description
The DSW-301 Dual Technology Wall Switch Occupancy Sensor turns lights OFF and ON based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. The DSW-301 replaces existing wall switches and fits behind a standard decorator wall plate.FEATURES AND BENEFITS:- High sensitivity and dense coverage for exceptional performance- Allows multi-way control from one of up to four control locations- Color-matched lens and low profile for appealing design- Optional neutral connection with break off tab to expose neutral terminals120/277VAC and 347VAC models- Defaults to Manual-On operation for maximum energy savings
Specifications
| Brand Name | WattStopper | Sub Brand | Pass & Seymour |
| Item Name | Occupancy Sensor | Type | Dual Technology, Wall Switch |
| Voltage Rating | 120 - 277 VAC | Sensor Type | Passive Infrared |
| Sensing Distance | 2.2 m, 10.6 m | Color | White, Gloss |
| Mounting Type | Surface | Frequency Rating | 0 - 60 Hz |
| Maximum Load Capacity | 1500 W | Material | Plastic |
| Dimensions | 44 mm W x 46 mm D x 69 mm H | Mounting Height | 1.2 m |
| Standards | ROHS, UL, cUL, FCC part 15, Complies with 2017 NEC requirements, RoHS | Application | For Offices, Conference Rooms, Lunch/Break Rooms, Commercial |
| UPC | 754182935444 |
Packages
| 1 - UNIT - 1 | 20 - UNIT - 20 |
