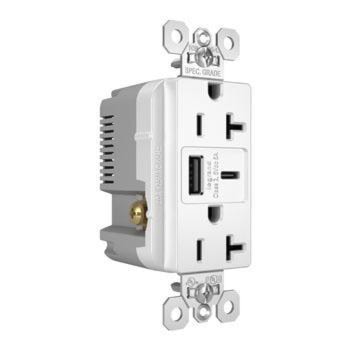

PASS & SEYMOUR TR20USBAC6W 20A 125V Specification Grade Ultra-Fast USB Type-A/Type-C Chargers with Duplex Tamper-Resistant Receptacle, White
pastr20usbac6w
PASS & SEYMOUR TR20USBAC6W 20A 125V Specification Grade Ultra-Fast USB Type-A/Type-C Chargers with Duplex Tamper-Resistant Receptacle, White
Price
$78.26
/ EA
Inventory
Available for delivery
Available for pick up at
Abbotsford
Manufacturer:PASS & SEYMOUR
Manufacturer #:TR20USBAC6W
Description
20A 125V Tamper-Resistant Receptacle with two 6A USB fast charging ports Type A and C
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | USB Charger Duplex Receptacle | Type | Tamper-Resistant, Type A/C |
| Grade | Specification | Voltage Rating | 125 |
| Amperage Rating | 20 A, 6 A | Wire Type | Solid/Stranded |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Rating | 5-20R | Conductor Size | 14-10 AWG |
| Material | Nylon | Color | White |
| Finish | Matte | Wiring Configuration | Back and Side Wire |
| Terminal Connection | Screw | Contact Material | CDA 260 Brass |
| Temperature Rating | -40 °C to 60 °C | Standards | cULus Listed, CSA C22.2 No. 42, CSA C22.2 No. 223, RoHS Compliant, UL498, UL94 V2 |
| UPC | 785007215625 |
Packages
| 1 - UNIT - 1 | 10 - UNIT - 10 | 50 - UNIT - 50 | 2400 - SKID - 2400 |
