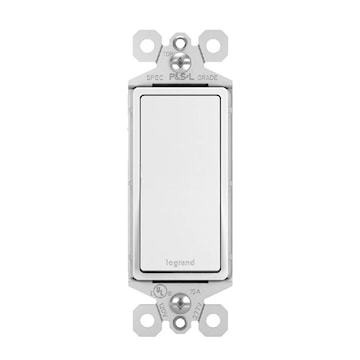

PASS & SEYMOUR TM870-W 15Amp 120/277VAC 1-Pole radiant® Decorator Switch, White

In Stock
Price $3.60 / EA
Qty EA
Manufacturer:PASS & SEYMOUR
Manufacturer #:tm870-w

Description

The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. radiant® Screwless Wall Plate not included. FEATURES AND BENEFITS: • Smooth paddle action. • High-impact resistant thermoplastic construction. • External screw-pressure-plate back and side wired. Accepts #12 and #14 AWG. • Push wire #14 AWG. • Narrow back body leaves more room for wires in the box. • Extra-long, through-body strap eliminates floating installations and imperfect applications. • Easy-access green hex head ground screw. • Tri-drive ground, terminal and mounting screws. • ON/OFF swtiches conform to NEC® 430-104 requirements for kitchen and disposal units

Specifications

Brand Name Pass & Seymour Sub Brand The Radiant®
Item Name Decorator Switch Type 1 Gang
Voltage Rating 120/277 V Amperage Rating 15 A
Number of Poles 1 Action Off
Actuator Rocker/Button Terminal Connection Screw
Material Thermoplastic Color White
Dimensions 4.2 in H x 1-1/2 in T Mounting Type Wall, Flush, Screw
Standards UL 498, 20 Application For Residential/Commercial use

Packages

1 - UNIT = (1) 10 - UNIT - 10 100 - UNIT - 100 6500 - SID = 6500
