TAB256306951158

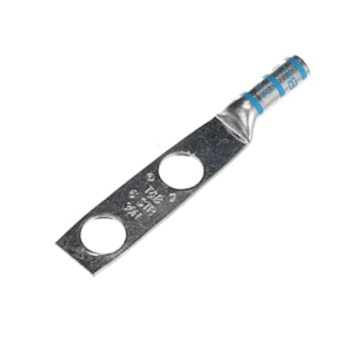

ABB 3/8 inch #6 AWG Color-Keyed Two Hole Compression Lug Long Barrel, Blue
Description
Color-Keyed® two hole lug with long barrel is a compression connector for copper conductors. Made of high-conductivity wrought copper with electro-tin plate. 3/8 inch bolt is used and the lug is used for 600 V to 35 kV applications.
Specifications
| Brand Name | ABB | Sub Brand | Color-Keyed® |
| Item Name | Compression Lug | Type | Long Barrel |
| Conductor Size | 6 AWG | Number of Holes | 2 |
| Stud Size | 3/8 in | Color Code | Blue |
| Material | Copper | Voltage Rating | 35000 V |
| Barrel Type | Long, Straight | Die Code | 24 |
| Finish | Tin Plated | Standards | UL File Number E9809 |
| UPC | 786210073866 |
Packages
| 1 - UNIT - 1 | 50 - UNIT = 50 | 500 - UNIT = 500 | 7200 - UNIT = 72000 |
