CAB22/6SHFT6

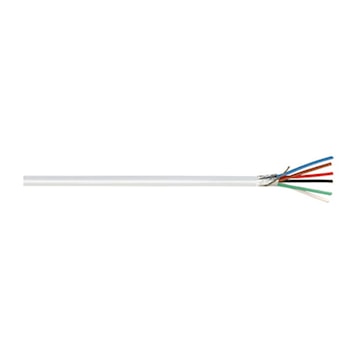

22/6C FT6 Plenum Shielded Cable, White
Description
Remee 725228SM2W 22 AWG 6 Conductors Shielded Stranded Bare Copper CMP Plenum Security and Alarm Cables - 1000FT Reel - White. The security business has evolved beyond simple intrusion detection and surveillance monitoring. The use of Ethernet networks and the Internet of Things (IoT) can now take door switch data and notify users that it is open or closed, whether they are on site or not. A thermostat control or CCTV camera can send its data off-site to users as well.
Specifications
| Brand Name | Remee Products | Item Name | Security and Alarm Cable |
| Type | CMP Plenum, Shielded | Number of Conductors | 6 |
| Conductor Size | 22 AWG | Conductor Material | Copper |
| Length | 1000 ft | Outside Diameter | 0.165 in |
| Stranded/Solid | Stranded | Voltage Rating | 300 VAC |
| Shield Type | Aluminum/Polyester Tape | Color Code | Black/Blue/Brown/Green/Natural/Red |
| Insulation Material | Remguard Plenum Polymer | Insulation Thickness | 0.007 in |
| Jacket Material | Remguard Plenum Polymer | Jacket Thickness | 0.015 in |
| Weight per 1000 Foot | 22 lb | Temperature Rating | -2 to 60 °C |
| Standards | cETLus Listed, NEC Article 800, UL Subject 444, Type CMP | Application | For Communication Application |
Packages
| 305 - UNIT - (305) |
