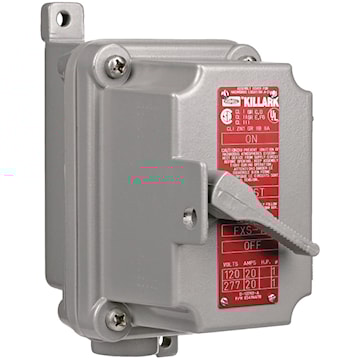

HUBBELL 30Amp 1 Pole KILLARK FXS Tumbler Switch, Feed Thru, 3/4 inch Hub
kilfxsd51
HUBBELL 30Amp 1 Pole KILLARK FXS Tumbler Switch, Feed Thru, 3/4 inch Hub
Price
$1,207.54
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:HUBBELL
Manufacturer #:FXSD51
Description
FXSD Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Pro
Motor running protection when overload heaters are used.
Factory Sealed so no external seals are required.
Type 3 (raintight) rated.
Enclosures are cast copper-free aluminum alloy.
Operating shaft is stainless steel.
Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.
Ground flange joint between bolted cover and box provide required flame path.
Provisions for padlocking switch in either “ON” or ”OFF” position is standard.
Specifications
| Brand Name | Killark | Sub Brand | Killark |
| Item Name | Manual Motor Starting Switch with Overload Protection | Type | Aluminum manual motor starting switch with overload protection |
| Coil Voltage | 115 - 230 VAC | Control Voltage | 230 VAC |
| Power Rating | 1 HP @ 115-230 VAC | Phase | 1 |
| HP Rating | 1 hp | Number of Poles | 1 |
| Actuator Type | Lever | Dimensions | 3-11/16 in W x 5-11/32 in D x 6-13/16 in H |
| Series/Model | FXSD | Material | Aluminum |
| Enclosure Type | Aluminum enclosure | NEMA Rating | NEMA 3 |
| Standards | UL Listed, CSA Certified, FM Approved | Application | Provides Manual Starting and Stopping of Small AC or DC Motors, Motor Running Protection When Overload Heaters are Used |
| UPC | 783936197371 |
Packages
| 1 - UNIT - 1 |
