cab6rw90gre75

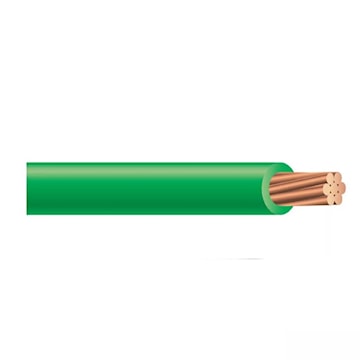

P T I CABLES 75mtr 6 AWG RW90 X-LINK Stranded Copper Cable, Green
cab6rw90gre75
P T I CABLES 75mtr 6 AWG RW90 X-LINK Stranded Copper Cable, Green
Price
$4.4062
/ M
Inventory
Available for delivery
Available for pick up at
Abbotsford
Manufacturer:SONECABLE
Manufacturer #:890
Description
Copper Conductor, 600 V, 90 °C MAX - 40 °C MIN, 1/0 AWG to 1000 KCMIL. Sizes 1/0 AWG and larger are Sunlight Resistant and in Green. Class B compressed stranded bare copper per ASTM B3 and ASTM B8. Cross Linked Polyethylene (XLPE) SIMpull®. Single copper conductor with low temperature, moisture resisting XLPE (cross linked polyethylene) insulation. Standard sizes 1/0 AWG and larger utilize SIMpull ® technology, are Sunlight Resistant in all colors and packaging. This product meets the current RoHS requirements. No lead is added or used in manufacturing.
Specifications
| Brand Name | Approved Vendor | Item Name | RW90 Building Wire |
| Type | Sunlight-Resistant | Wire Gauge Size | 6 AWG |
| Stranded/Solid | Stranded | Number of Strands | 7 |
| Conductor Material | Copper | Insulation Material | Cross-Linked Polyethylene |
| Jacket Color | Green | Voltage Rating | 600 V |
| Outside Diameter | 0.271 in | Insulation Thickness | 0.045 in |
| Amperage Rating | 95 A at 75 °C, 105 A at 90 °C Open Air, 65 A at 75 °C, 75 A at 90 °C Cable in Conduit | Weight per 1000 Foot | 96 lb |
| Temperature Rating | -40 to 90 °C | Standards | CSA Specification C22.2 No. 38, CSA FT4 - Flame Test Rating, CSA Certified in File Number LL90458, Lead-Free and RoHS Compliant |
| Application | For Open Wiring and Use in Raceways (Except Cable Troughs and Ventilated Flexible Cableways) in Dry or Wet Locations |
Packages
| 75 - UNIT - 75 |
