3M CANADA 5317 3M™ Motor Lead Pigtail Splice 5317, 5-8 kV, Non-Shielded, 2-1/0 AWG (feeder), 4-1/0 AWG (motor lead)
mmm5317
3M CANADA 5317 3M™ Motor Lead Pigtail Splice 5317, 5-8 kV, Non-Shielded, 2-1/0 AWG (feeder), 4-1/0 AWG (motor lead)
Price
$405.69
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:3M CANADA
Manufacturer #:5317
Description

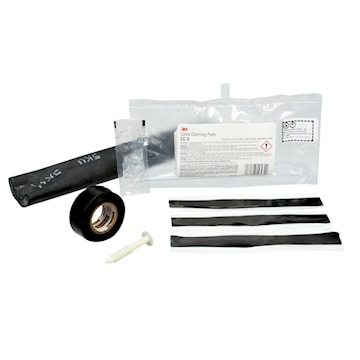

Kits are designed to be used with copper compression, one or two hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ 30000 series copper compression lugs or other UL listed copper lugs, can be used.
Specifications
| Brand Name | 3M | Item Name | Motor Lead Pigtail Splicing Kit |
| Voltage Rating | 8 kV | Conductor Size | 2 AWG - 1/0 kcmil Feeder Cable, 4 AWG - 1/0 kcmil Motor Lead |
| Material | EPDM Rubber | Color | Black |
| Temperature Rating | 90 °C | Series/Model | 5300 |
| Length | 9-1/2 in | For Use With | Copper Compression, 1 or 2 Hole Lugs |
| Standards | RoHS, CSA Certified | UPC | 054007083146 |
Packages
| 1 - UNIT - 1 |
