cab18/12praa300v
DECA CABLES INST 18/12PR AIA 300V 300V 18/12PR Deca Aluminum Armored Instrument Cable, Grey
cab18/12praa300v
DECA CABLES INST 18/12PR AIA 300V 300V 18/12PR Deca Aluminum Armored Instrument Cable, Grey
Price
$34.1750
/ M
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:SONECABLE
Manufacturer #:INST 18/12PR AIA 300V
Description

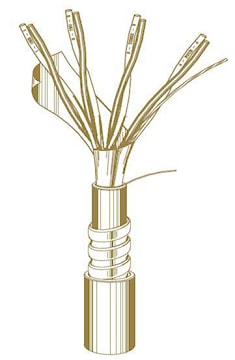

Instrumentation cable with 7 strand concentric, class B bare or tinned copper wire. Two or three conductors are twisted together to form a pair or triad. The individually shielded pairs and triads have a finished lay of 51 mm. Unshielded pairs and triads have staggered lays to prevent electromagnetic interference and cross talk. When specified, pairs and triads are shielded with 100% coverage aluminium/polyester tape and a seven strand tinned copper drain wire is used. The shielding tape is designed to provide total shield isolation from all other shields.
Specifications
| Brand Name | Approved Vendor | Item Name | Instrumentation Cable |
| Type | Overall Shielded, Aluminum Interlocked Armour | Number of Conductors | 12 Pair |
| Conductor Size | 18 AWG | Conductor Material | Tinned Copper |
| Outside Diameter | 1.248 in | Stranded/Solid | Stranded |
| Number of Strands | 7 | Voltage Rating | 300 V |
| Jacket Color | Gray | Insulation Material | Cross-Linked Polyethylene |
| Insulation Thickness | 0.025 in | Jacket Material | PVC |
| Weight per 1000 Foot | 997 lb | Temperature Rating | -40 °C |
| Standards | CSA Certified, FT4 Flammability Rating |
Packages
| 1 - UNIT - 1 | 300 - UNIT - 300 |
