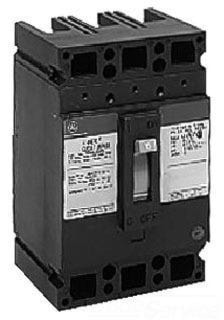

ABB TED136150WL 150Amp 600VAC 3-Pole General Electric Type TED Thermal-Magnetic Trip Molded Case Circuit Breaker - Line & Load

Price $3,159.23 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
Qty EA
Manufacturer:ABB
Manufacturer #:TED136150WL

Description

Molded Case Circuit Breaker with core E family, mid tier interruption rating, 150 A frame rating, 3-pole, 600 V voltage rating, 150 A ampere rating, line and load lugs. Thermal-magnetic trip E150 line circuit breakers.

Specifications

Brand Name GE Item Name Circuit Breaker
Type Type TED, Molded Case Number of Poles 3
Interrupt Rating 18 kA Voltage Rating 600 V
Terminal Connection Magnetic, Line/Load Lug Mounting Type Bolt-On
Phase 3 Frequency Rating 50/60 Hz
Conductor Size 1/0-3/0 AWG Actuator Pivot/Toggle Handle
Frame E150 Housing Material Plastic
Trip Type Non-Interchangeable Temperature Rating 10 - 50 °C
Dimensions 4-1/8 in W x 3-3/8 in D x 6-5/16 in H Standards CSA File No. LR57114, Federal Specification W-C-375, HACR Rated, UL 489/E11592
UPC 783164132977

Packages

1 - UNIT - 1
