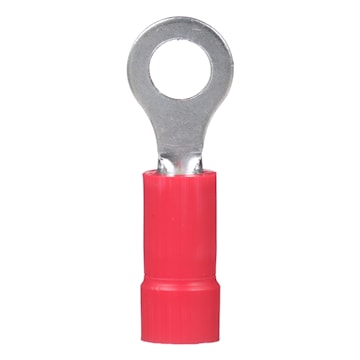

PANDUIT PV18-8R-CY 22-18AWG Type PV-R Ring Terminal, Vinyl Insulated – Funnel Entry, Red

Price $0.6767 / EA
Available for backorder
Unavailable for pick up Abbotsford
Qty EA sold in multiples of 100
Manufacturer #:PV18-8R-CY


Ring Terminal, 22 – 18 AWG, #8 stud size, vinyl insulated, funnel entry, standard package.PRODUCT FEATURES:- Insulation support helps to prevent wire damage in bending applications- Ring tongue design assures a secure connection in high vibration applications- Brazed seam protects terminal barrel from splitting during the crimp process- Internal barrel serrations assure good wire contact and maximum tensile strength- UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C)- UL and CSA rated up 600 V per UL 486A/B


Brand Name Panduit Sub Brand Pan-Term®
Item Name Insulated Ring Terminal Type Loose Piece
Conductor Size 22-18 AWG Stud Size #8
Voltage Rating 600 V Insulation Material Vinyl
Material Copper Finish Tin Plated
Color Red Barrel Type Funnel
Tang Type Ring Barrel Length 0.39 in
Barrel Configuration Funnel Entry Temperature Rating 105 °C
Width 0.31 in Standards cULus Listed 587H E52164, CSA Certified LR31212
UPC 074983694778


100 - UNIT - 100 500 - UNIT - (500)
